Customized Integrated RFID Reader Outdoor IP64 ABS Industrial Plastic Case

Product Categories
SUNSHINE RFID Technology Co.,Limited
Contact Now

Customized Integrated RFID Reader Outdoor IP64 ABS Industrial Plastic Case

Brand Name : SUNSHINE

Model Number : F5012

Certification : CE,ROSH

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T, Western Union

Packaging Details : Carton

Tag Protocol : EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

Working Frequency : 840～960 MHz

Output Power Flatness : ±0.2dBm

Reading Distance : ≥14m（relate to tags type, transmitted power and application environment）

Multi-tags Reading : ≥400tags/s

Enclosure : ABS industrial plastic case

Antenna Type : 12dbi linear polarization antenna

Contact Now

Integrated RFID Reader with 12 dbi antenna and long read distance and outdoor IP64

Product Advantage

  • Remarkable performance, can achieve a reading distance over 14m for single tag reading.
  • Remarkable performance in intensive tags reading, can attain a tags identification rate of 400tags/s.
  • Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.
  • Adopted integrating RF chip, module performance is more stable, and more suitable for harsh application environment.
  • The use of carrier wave cancellation technology makes the tags reading more accurate and reading scope wider.
  • Waterproof and dustproof of industrial design, IP64.
  • Employed IMPINJ R2000 RF Chips, up to -82dbm receiving sensitivity and the highest performance in this field makes this module more suitable for harsh application environment.
  • High stability and reliability, 60*24 hours high temperature of workstation, can work stably and continuous.

Product Electrical Parameters

NO. Name Parameters
1 Working Voltage DC +12V
2 Working Temperature -25～+65℃
3 Working Humidity ≤95%(+25℃)
4 Storage Temperature -40～+80℃
5 Tag Protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
6 Working Frequency 840～960 MHz
7

Supporting Working
Areas

China 1, China 2
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302
208 with & without LBT regulations Japan,Korea,Malaysia,Taiwan
8 Output Power Software adjustable, step interval 1.0dB, maximum +30dBm
9 Output Power Flatness ±0.2dBm
10 Receiving Sensitivity -82dBm
11 RF Port Standing Wave ≤1.5
12 Reading Distance ≥14m(relate to tags type, transmitted power and application environment)
13 Multi-tags Reading ≥400tags/s
14 Interface Communication Rate 115200bps
15

Working Temprature
Detection

 Support
16 Intensive Read/Write Mode DRM Support
17

Antenna Connection
Protection

 Support
18 RSSI Support
19 Antenna Type 12dbi linear polarization antenna
20 Communication Port RS485,RS232(DB-9)RJ45(100M Ethernet port)
21 Buzzer Yes
22 Enclosure ABS industrial plastic case
23 Dimension 44.5*44.5*7.5CM
24 IP Grade IP64


Interface definition

Pin NO. Name Description
1 485-A RS485 A
2 485-B RS485 B
3 GND Ground
4 GND Ground
5 E-6 Ethernet RJ45 PIN6
6 E-3 Ethernet RJ45 PIN3
7 +12V DC +12 Power supply
8 GND Ground
9 E-1 Ethernet RJ45 PIN1
10 E-2 Ethernet RJ45 PIN2
11 232-RX RS232 RX
12 232-TX RX232 TX

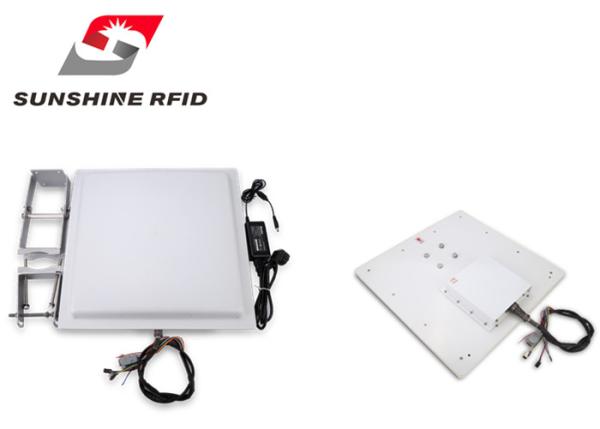

Customized Integrated RFID Reader Outdoor IP64 ABS Industrial Plastic Case
Customized Integrated RFID Reader Outdoor IP64 ABS Industrial Plastic Case




Application scenarios

  • Asset: Mobile assets inventory management system, routing inspection management system.
  • Traceability: products/goods traceability management system.
  • Anti-fake: cigarettes and wine, valuables’ anti-fake application
  • Sales: the retail inventory, promotion, cargo inventory management
  • Agriculture: smart agriculture and forestry management solution, Temperature and humidity monitoring system.
  • Storage: intelligent storage management program
  • Electricity: intelligent Inspection tour management solution, electric assets tracking management system
  • Exhibition: Access control, data acquisition solution, RFID wrist strap technology solutions in the exhibition center,


How to order

Please chat with us through TradeManager or click "contact supplier" to leave massage about the quantity,special modelyou want or your requirement. Then we will reply to you ASAP.
After we confirm all detailed information, we Will Make PI (Performa Invoice) for you to confirm the order if you need!
