12 Dbi For Long Read Distance Vehicle RFID Reader For Vehicle RFID Management System

Name: 12 Dbi For Long Read Distance Vehicle RFID Reader For Vehicle RFID Management System
Brand: SUNSHINE
Price: 1 USD

Brand Name : SUNSHINE

Model Number : A4012

Certification : CE,ROSH

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T, Western Union

Packaging Details : Carton

Working frequency : FCC ISM 902~928MHz or ETSI 865.6~867.6MHz

Gain : 12dbi

Front-to-Rear Ratio : ＞25dB

polarization mode : linear polarization

Input Impedance（Ω） : 50

VSWR : ＜1.5

Interface : N

Contact Now

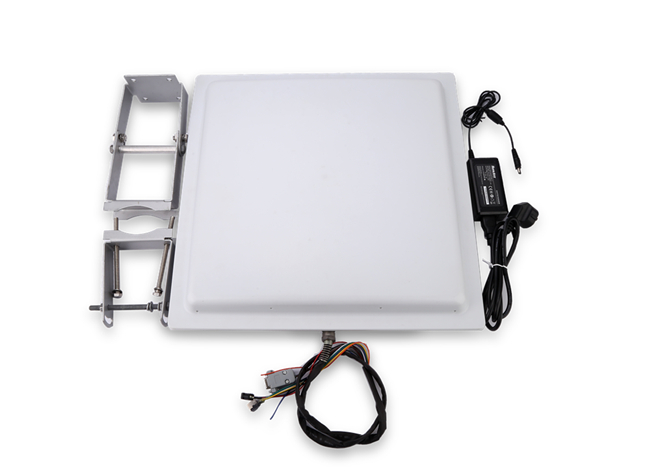

Uhf rfid Antenna with 12 dbi for long read distance and vehicle RFID management system

12dbi/8dbi High Gain Antenna

The antennas can be connected with our serial UHF RFID readers, such as F5860, to realize the RFID function of data collection, which are widely used in various RFID systems.

Technical Parameters

Name	A4112	A4108
Working frequency	FCC ISM 902~928MHz or ETSI 865.6~867.6MHz	FCC ISM 902~928MHz or ETSI 865.6~867.6MHz
Gain	12dbi	8dbi
Front-to-Rear Ratio	＞25dB	＞25dB
polarization mode	linear polarization	circular polarization
Input Impedance(Ω)	50	50
VSWR	＜1.5	＜1.5
power capacity(W)	500	500
Interface	N	N
Lightning protection	DC ground	DC ground
Dimension	44544542	22522530
Weight	4.25kg	1kg
Radome Material	ABS/glass reinforced plastic	ABS/glass reinforced plastic
Weight of Mounting Kits	0.5kg	0.4kg
