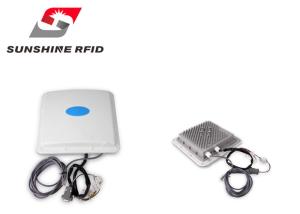

Long Distance Active 2.45 Ghz RFID Reader Waterproof For Outdoor Anti Collision

Name: Long Distance Active 245 Ghz RFID Reader Waterproof For Outdoor Anti Collision
Brand: SUNSHINE
Price: 1 USD

Brand Name : SUNSHINE

Model Number : F3421

Certification : CE,ROSH

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T,Western Union

Packaging Details : Carton

Identify direction : Directional

Antenna : 15dBi build-in antenna

RF power range : -30dBm~0.0dBm( adjusted by 32 grade)

Reading range : 80~120m adjustable RSSI reader can be adjusted less than 10m

Operating frequency : 2.4GHz~2.5GHz ISM

Input and output : 1 triggering input, 1 relay output

Contact Now

Waterproof Directional Active RFID Reader 2.4Ghz for outdoor use

Product Description

RS232,RS485,USB,Wiegand26/34/42/50,RJ45, which can realize a reading distance of 80－120m. It owns a superior multi-tags reading rate and can achieve a tag identification rate of 1000 tags/s or above.
Build-in 15dbi antenna
F3421 is a high-performance 2.45GHz active RFID reader/writer designed for high challenging RFID application environment.

Product Electrical Parameters

Operating frequency	2.4GHz~2.5GHz ISM
Identify direction	Directional
Antenna	15dBi build-in antenna
RF power range	-30dBm~0.0dBm( adjusted by 32 grade)
Receiving sensitivity	-90.0dBm
Operating mode	FHSS or fixed frequency(set by software)
Modulation	GFSK
Reading range	80~120m adjustable RSSI reader can be adjusted less than 10m
Anti-collision	Up to 800－1000 tags read simultaneously
Buffer capacity	2000 tags data
Communication speed	25Kbps, 1Mbps, 2Mbps(adjustable)
Communication interface	RS-232, S-485, Ethernet, Wiegand26/34/42/50
Input and output	1 triggering input, 1 relay output
Optional function	2 relays, CAN, RSSI, ID match function, Offline function, Time function
Power supply	AC input: 100~240V, 50/60Hz 1.2A DC output: 5V/1A
Product size	225mm225mm100mm
Packing size	450mm300mm140mm
Gross weight	2.78kg
Net weight	1.82kg
Working temperature	-20°C~+70°C(-4~+158 degree F)
Storage temperature	-40°C~+85°C (-40~+185 degree F)
Accessories	Power adapter, Power cable, RS-232 cable, Mounting bracket
Working status indication	Buzzer

Long Distance Active 2.45 Ghz RFID Reader Waterproof For Outdoor Anti Collision
