100M Long distance UHF Active RFID card 2.45GHz for people tracking
Main Specifications
- 2.45Ghz operating frequency, private protocol
- More than 100meters reading distance
- ID card
- IP67 rating
Key Features of active rfid card
Long reading distance
Ultra low RF power consumption, long life time
Excellent anti-collision mechanism makes multiple tags real time monitoring adaptable
High protection grade
Large user memory, which can be used for many flexible applications
Mainly Performance Parameter
| Name | 2.45GHz RSSI UHF RFID active tag |
| Working Frequency | 2.4GHz~2.5GHz ISM |
| RF Power | -30.0dBm~1.0dBm |
| Reading distance | 0~50m (with standard matched 2dBi Omni-directional antenna) 0~200m(depends on antenna) |
| Operating current | <22uA, 3V (500ms transmitting interval) |
| Modulation | GFSK |
| Communication rate | 250Kbps |
| User memory | 4K byte |
| Working temperature | -20°C~+60°C 90%RH |
| Storage temperature | -40°C~+80°C |
| Life time | Read and write: 3 years(500ms transmitting interval) Read only: 5 years (500ms transmitting interval) |
| RSSI function | YES |
| Electric hint | alarm when low battery |
| Material | ABS(ROHS), flame retardant |
| Colour | White, blue, yellow, green |
| Environmental sealing | IP65 |
| Drop test | 1.2m |
| Weight | 30g |
| Dimension | 87mm*56mm*5mm |
Typical Applications of active rfid card T3433
Cold chain logistic
Temperature monitoring and collecting
School students’ management
Vehicle and asset tracking
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Product Tags:
|
|

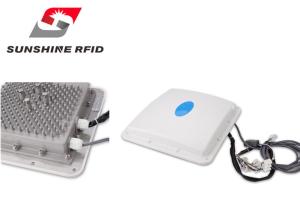

High Protection Grade Active RFID Reader RFID Tag Reader For People Tracking Images
|
